The combined strobe light and siren can be set in place to alert others of roadway hazards, work areas, dangerous road situations, underground tunnel and lifting machines, It can give eye-catching audio visual alarms. The siren (piezo speaker) and strobe light (xenon flashing tube) are contained in one device, providing nviromental protection, lightweight, shockproof and external long life. Flashing light designed for use in noisy areas where a ring might not be heard; light also for use in dark areas.
The product also can use super bright LED as bulb, to realize multi-times flashing function. LED color, flashing times and frequency can be customized based on customer's requirement.
Specification
|
|
Parameter |
| Supply voltage |
AC24V~AC240V/AC380V DC24V~DC48V(optional) |
| Frequency |
50Hz~60Hz |
| Tone |
A,B,D,E |
| Power consumption |
10W |
| Color |
Red, yellow or green(optional) |
| Sound level |
108dB~110dB |
| Alarm |
Audio-visual alarm |
| 30˚C ~ +70˚C |
| 10% ~ 95% (no condensing） |
| IP Protection |
IP65 |
| Material |
Housing：Nylon+GF30%， Housing：PC |
| Weight |
0.5kg |
Main functions and features
- Compact size and light weight.
- High brightness, alarm sound and selectable tones.
- Continuous operation, reliability and stability.
- Several tones, and wide applications.
- PC housing-- with good anti-impact strength, thermal stability, high transmittance.
- Both xeon light tube and Led light tube are available.
- Several mounting styles for selections, such as screws fixing, magnetic fixing or flange type.
Model Selection
|
|
Installation |
| WL-010 |
3 M6 screws |
| WL-010C |
Magnetic mounting |
| WL-010F |
Flange mounting |
| PJ061 |
Special housing |
Wiring Connection
Product File
- Model: WL-010
- Applications: Applied to various enginerring machinery, cranes and large port machinery for the warning.
- Standard: GB 8108-1999 ,GB 3785-1983
- Certificate: CE Utility Model201120288390.9
- Improve Records: In 2006, make the auto-wind transformer processed by the professional supplier, providing the product consistency and stability
- Fault Records: Vesicant corrodes the electricity module-change to the dedicated solid glue for the module
- Quantity/Delivery Day: 5 Pc / 6 Days
Notice
- If install this product outdoor, please do not water towards the speaker; the speaker need to towards ground.
- Should you have any other questions please do not hesitate to contact us
Main functions and features
- Check whether the power supply complies with rated voltage of the siren.
- Secure the siren on a smooth surface which has enough strength using M6 screws.

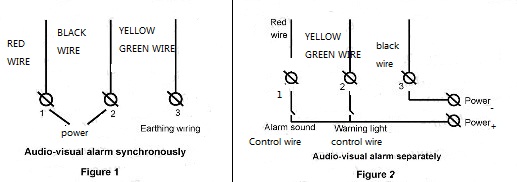

- For Giving emergency sound and alert light synchronously, please see the figure 1, connect the power cable to the corresponding terminals, power on and then the siren start to work.
- For Giving emergency sound and alert light separately, please see the figure 2, connect the power cable and control cable to the corresponding terminals, power on and then the siren start
|
