Product Catagory: ALARM SERIES->STROBE FLASH



BEACON SIREN SERIES

Giving eye-catching audio visual alarms for mechanical engineering(overhead cranes, crawler crane and RTG etc), port machnery(gantry cranes and bridge cranes etc)

SPECIFICATION

Description
Parameter
Voltage AC24V~AC240V/AC380V/DC12V/DC24V/DC48V(optical)
Frequency 50Hz~60Hz
Tone A、B、D、E、Y
Power 10W
Color Red、Yellow、Green(optical)
Sound level 108dB~110dB
Alarm Audio-visual alarm
Ambient temperature -30˚C ~ +70˚C
Humidity 10% ~ 95% (no condensing)
IP protection IP65
Material Body:PA6+GF30%, Housing:PC
Weight 0.5kg

Mounting Dimension(Unit:mm)

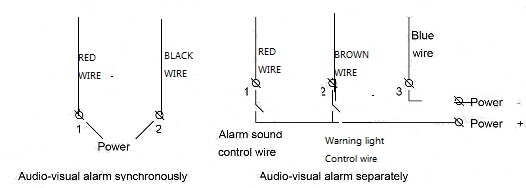

Wiring Diagram

Installation and Operation

  • Check whether the power supply complies with rated voltage of the siren.
  • Fix it onto the surface with 3pcs M6 bolts for the common mounting. Fix it onto the surface which has enough strength with 3pcs M6 bolts and nuts for the flange mounting. Directly fix it onto the surface of the magnetic metal which has enough magnetic force to avoid the coming off because of fierce shock or strong wind for magnetic mounting.
  • For Giving emergency sound and alert light synchronously, please see the figure 1, connect the power cable to the corresponding terminals, power on and then the siren start to work.
  • For Giving emergency sound and alert light separately, please see the figure 2, connect the power cable and control cable to the corresponding terminals, power on and then the siren start to work.

Notice

  • If install this product outdoor, please do not water towards the speaker, he speaker need to towards ground.
  • Advise not to use magnetic mounting under the fiercely shocking situation.
  • Please do not hesitate to contact us if any problem.

Product File

  • Model: WL-009
  • Applications: Giving eye-catching audio visual alarms for mechanical engineering(overhead cranes, crawler crane and RTG etc), port machnery(gantry cranes and bridge cranes etc) .
  • Standard:
  • Certificate:
  • Improve Records:
  • Fault Records:
  • Quantity/Delivery Day:





Functions & Features

  • Compact size and light weight.
  • High brightness, alarm sound and selectable tones.
  • Continuous operation, reliability and stability.
  • Several tones, and wide applications.
  • PC housing, Fresnel Type design, high transmittance, anti-UV, anti-aging.
  • Both xenon light tube and Led light tube are available.
  • Several mounting styles for selections, such as screws fixing, magnetic fixing or flange type.
