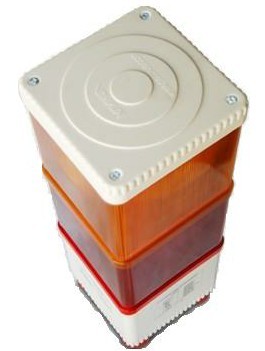

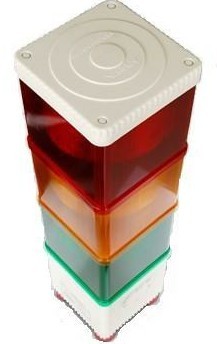

WL-005 LED tower light is specially designed for various cranes used in harbors metallurgies and coalmines, to check the operation status of an equipment or device.
The product employs PC enlosure, which houses super bright led cluster, piezo speaker and SCM control circuit, providing waterproof, shockproof, high luminous, stable performance, lightweight and ease of mount and maintenance. It gives emergency sound and alert light simultaneously.
Customized tones, control mode and flashing mode can be implemented based on customer’s special requirement.
Specifications
|
|
Parameter |
| Application |
For various cranes used in harbors metallurgies and coalmines |
| Voltage |
DC24V |
| Tone |
Y // D |
| IP Protection |
IP65 |
| LED color |
Red // Yellow // Green |
| Rating current |
<1A |
| dB SPL |
110dB |
| Operation mode |
Continuous |
- Model: WL-005
- Applications: Applied to various crane machines, crawler crane, travel crane and large machinery of metallurgy and mines.
- Standard: GB 8108-1999 ,GB 3785-1983
- Certificate:
- Improve Records: Modify the material and structure to eliminate the potential trouble through the aging and related testing in May, 2012.
- Fault Records: Flooding cause the product can not work normally. In May, 2012, there were 4 pcs products whose shells were broken and flooded. Assigned technician to the onsite making the anlysis and eliminating the fault.
- Quantity/Delivery Day: 5 Sets / 8 Days
Functions & Features
Three kinds of light colors, emergency sounds and led displays to indicate voltage operation status for selection
Strong anti-electromagnetic interference ability
Giving emergency sound and alert light at the same time, providing continuous operation
Product File
|
