Key Specification:
Features & Advantages
1. Beam Angle: 180 degree.
2. LED source:28LEDs Bridge Lux LED Chip
3. Lumen:2500LM
4. Our E40 30W street led lights are major in replacing CFL,HPS,MH etc directly without any modification.
5. 80% more energy saving compared with conventional street light, CFL, Incandescent light.
6. Cool,Neutral white color/Warm white color, high CRI with great directionality
7. Our street led lights can be fast turned on, no warm-up or cold start problems
8. Our street led lights solve 4 difficulties for LED packaging, heat sinking, operational lifespan, luminous efficiency
9. Special surface design with arc in our street led lights make sure the radiation diameter on the ground is accord with the standard size.
Detail specification
|
|
PKDLM003-E40-30W-28 |
| Wattage |
E40-30W |
| Beam Angle |
180° |
| Light Source/Count |
28pcs 1W |
| Lamp Base |
E40 E39 |
| Power consumption |
30W ±5% |
| Luminous flux |
2500lm ±10% |
| Color Temperature Standard |
Cool white: 5500~6700K |
| Natural white: 4000~5000K |
| Warm white: 2700~3500K |
| Input voltage |
85-265VAC,277VAC |
| LED Emitter Life |
50,000 hours |
| Replacement |
HPS 90W |
| Application |
Outdoor using, such as tunnels,road,squares,buildings, parks,etc.. |
| Size |

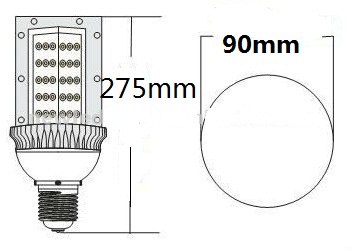

Dia 90mm * 275mm |
| Operating temperature |
-40~45℃ |
Application:
1. Road lighting.
2. Square park, garden
3.Factory,District area.
|
